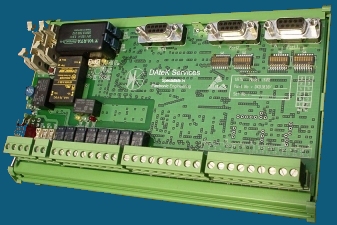

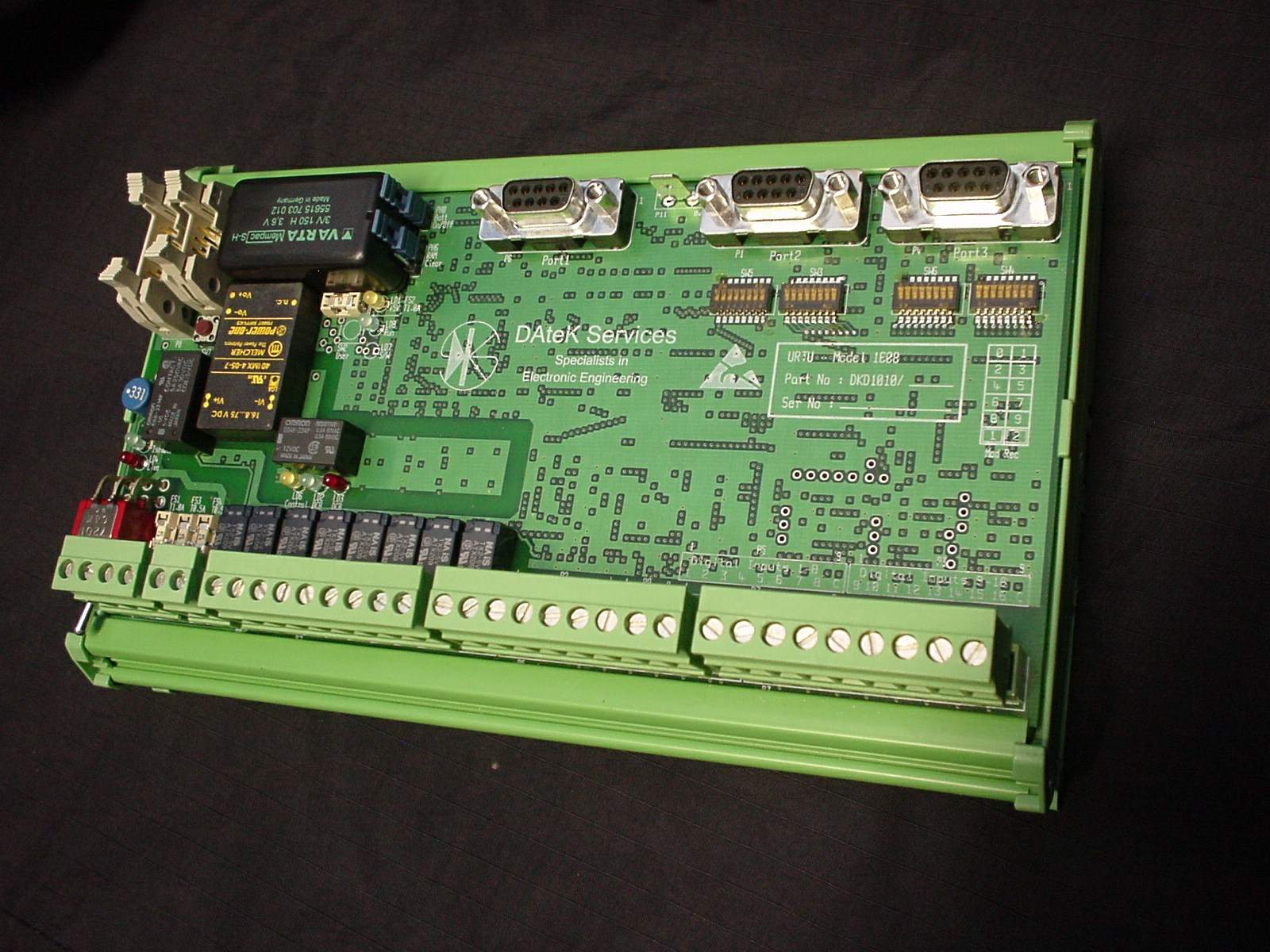

μRTU - DIN Rail mountable

The new DIN Rail mountable RTU has the following features:

  • 16 Digital Inputs
  • 8 Digital Outputs (Relay, with Solid State option)
  • 3 Serial Ports (RS232/RS485)

  • Popular Motorola 68331 processor
  • 1MB RAM
  • 1MB Flash Memory
  • 0.5MB EPROM
  • Real Time Clock

  • Battery Backup
  • I/O Expansion Bus
  • Multiple Power Supply Voltages 12V, 24V, 48V
  • Mains Monitoring Interface
  • Choice of Software Protocols
  • On-board DCB facility
  • User Configurable and Pre-configured Software
  • Compact Dimensions W:200mm, H:125mm, D:55mm

  • Available Now!

    Download Quick Spec. Sheet PDF (124kb)
    View Big Picture (216kb)

    SS60401 - Solid State Switch

    The SS60401 solid-state switch module has been designed specifically to replace the CP Clare electro-mechanical CUPV60401 relay where it is used in low current switching applications.

  • Lower cost
  • No large M.O.Q. / M.O.V.
  • Environmentally friendly (no mercury)
  • Lower power consumption
  • High reliability
  • Arc free
  • No EMI/RFI generation

  • A data sheet is available.
    Solid State Switch Assembly

    Download Full Spec. Sheet PDF (71kb)

    Protocol Convertors

    Our Protocol Convertor Unit can be pre-programmed to provide real-time conversion of data communications between protocols.

    2 Way Signalling

    Customer specific solutions using Thales I.S. and DAtek Services RTU products to allow transmission of both digital and analogue signals between two, or more, remote sites.
